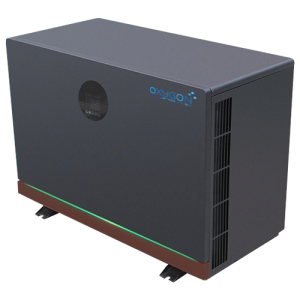

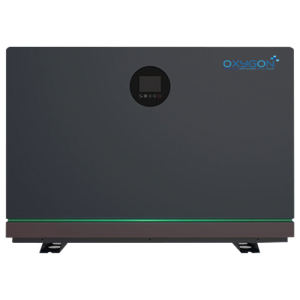

Pool Heat Pump

Cross Series

CODE	OX-BYC-013TH1	OX-BYC-017TH1	OX-BYC-021TH1	OX-BYC-025TH1
HEATING Air 26C Water 26C	3,0-12,5 kW	3,8 - 16,5kW	4,8 - 20,5kW	6,8 - 25kW
Power consumption	0,21 - 1,84kW	0,25 - 2,46kW	0,32 - 3,06kW	0,44 - 3,73kW
COP	6,80 - 14,50	6,70 - 15,00	6,70 - 15,00	6,70 - 15,50
HEATING Air 15C Water 26C	2,2 - 9,3kW	2,8 - 12,3kW	3,5 - 15kW	4,9 - 19kW
Power consumption	0,29 - 1,86kW	0,37 - 2,51kW	0,47 - 3,06kW	0,65 - 3,88kW
COP	5,00 - 7,50	4,90 - 7,50	4,90 - 7,50	4,90 - 7,50
COOLING Air 35C Water 27C	1,80 - 6,50kW	2,30 - 8,20kW	2,80 - 10,20kW	3,8 - 12,5kW
Power consumption	0,27 - 1,76kW	0,35 - 2,22kW	0,42 - 2,76kW	0,58 - 3,38kW
COP	3,70 - 6,60	3,70 - 6,60	3,70 - 6,60	3,70 - 6,60
POWER SUPPLY	220~240V / 1 / 50	220~240V / 1 / 50	220~240V / 1 / 50	220~240V / 1 / 50
RATED INPUT POWER	1,9 kW	2,5 kW	3,1 kW	3,9 kW
AMPERAGE	8,5 A	11,3 A	14,0 A	17,2 A
COOLANT	R32	R32	R32	R32
CONDENSER	Titanium	Titanium	Titanium	Titanium
COMPRESSOR	Inverter	Inverter	Inverter	Inverter
RELIEF VALVE	Electronic EEV	Electronic EEV	Electronic EEV	Electronic EEV
AIR DIRECTION	Horizontally	Horizontally	Horizontally	Horizontally
MINIMUM FLOW	4,5 m3 / h	5,5 m3 / h	6,5 m3 / h	9 m3 / h
LOGIN	Ø50	Ø50	Ø50	Ø50
OPERATING TEMPERATURE	-15C - +43C	-15C - +43C	-15C - +43C	-15C - +43C
HEATING TEMPERATURES	15C - 40C	15C - 40C	15C - 40C	15C - 40C
COOLING TEMPERATURES	8C - 28C	8C - 28C	8C - 28C	8C - 28C
NET DIMENSIONS L/W/H mm	900 * 440 * 620	1050 * 440 * 670	1050 * 440 * 670	1050 * 440 * 900
MIXED DIMENSIONS L/W/H mm	960 * 500 * 740	1110 * 500 * 790	1110 * 500 * 790	1110 * 500 * 1020
WEIGHT net/gross	55 / 65	63 / 73	68 / 78	88 / 98
NOISE 1m	< 40-49dB	< 41-51dB	< 41-52dB	< 41-52dB
mode	HEATING & COOLING WITH REVERSE DISCHARGE	HEATING & COOLING WITH REVERSE DISCHARGE	HEATING & COOLING WITH REVERSE DISCHARGE	HEATING & COOLING WITH REVERSE DISCHARGE

Upgrade your pool heating and cooling with state-of-the-art heat pump technology Oxygon.
