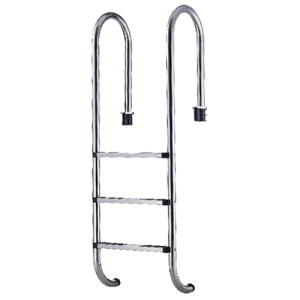

AISI-304 and AISI-316 stainless steel pool ladders. All ladders are made of Ø42 mm x 1,2 mm diameter pipe. The steps have a flat, non-slip surface. The ladders are supplied complete with all fittings in a box for easy installation. Steps and overlays are protected with a durable film that can be removed during installation. For swimming pools using chlorinated salt, we recommend AISI-316 electrolytically polished ladders.


| CODE | STEPS | INOX | A (mm) | B (mm) | C (mm) | D (mm) | E(mm) | F(mm) |
|---|---|---|---|---|---|---|---|---|
| 104.09.224 | 2 | 304 | 360 | 630 | 250 | 680 | 170 | 500 |
| 104.09.234 | 3 | 304 | 360 | 630 | 250 | 930 | 170 | 500 |
| 104.09.244 | 4 | 304 | 360 | 630 | 250 | 1180 | 170 | 500 |
| 104.09.254 | 5 | 304 | 360 | 630 | 250 | 1430 | 170 | 500 |
| 104.09.226 | 2 | 316 | 360 | 630 | 250 | 680 | 170 | 500 |
| 104.09.236 | 3 | 316 | 360 | 630 | 250 | 930 | 170 | 500 |
| 104.09.246 | 4 | 316 | 360 | 630 | 250 | 1180 | 170 | 500 |
| 104.09.256 | 5 | 316 | 360 | 630 | 250 | 1430 | 170 | 500 |
