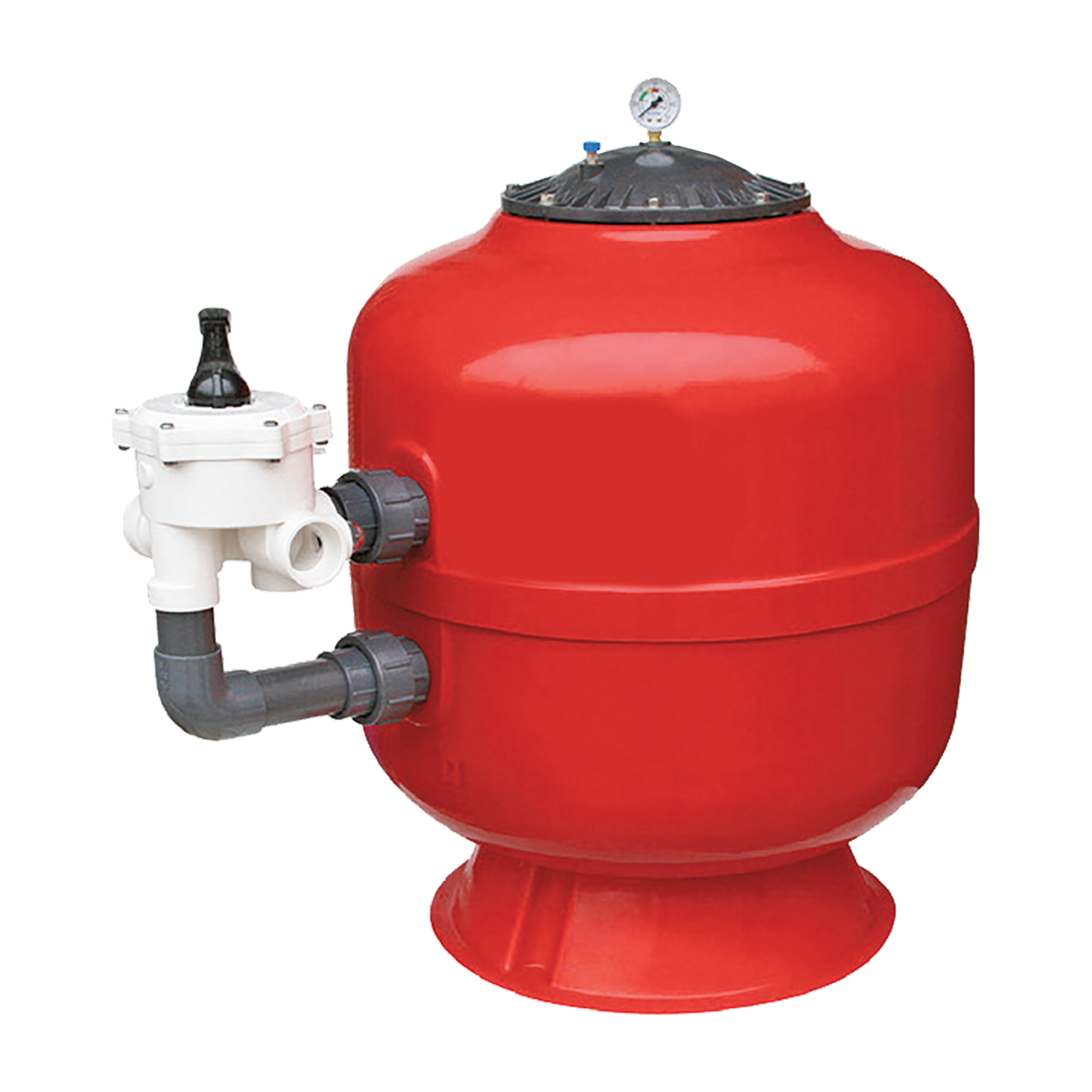

ESTER Swimming Pool Sand Filter — product photo OXYGON

Available in wholesale offer

ESTER Swimming Pool Sand Filter

ESTER pool sand filters made of high quality polyester, with a 6-position manual multiport valve and CE certification. Available from Ø400 to Ø920 for domestic and professional pools.

Model

Clear

Request a Quote ☎ 2310 810 000

Specifications

CODE	MODEL (Ø)	FLOW (m³/h)	CONNECTION (Ø)	SAND (kg)	WEIGHT (kg)
102.01.09	Ø400	8	Ø50	60	10
102.01.10	Ø500	10	Ø50	75	13
102.01.11	Ø620	15	Ø50	150	24
102.01.12	Ø760	22	Ø63	350	35
102.01.13	Ø920	30	Ø63	450	44

Dimensions (cm)

MODEL	A	B	C	D
Ø400	Wide base	Wide base	Wide base	Wide base
Ø500	Wide base	Wide base	Wide base	Wide base
Ø620	Wide base	Wide base	Wide base	Wide base
Ø760	Wide base	Wide base	Wide base	Wide base
Ø920	Wide base	Wide base	Wide base	Wide base

Manual & Documentation

Request the detailed installation & use manual for the ESTER series.

Request the manual

FAQ

How much sand does a sand filter need?

It depends on the size (Ø) of the filter. The exact quantity in kg is indicated in the “SAND” column of the technical characteristics table for each model. Use quartz sand 0,5–0,8 mm or glass filter media.

What is the difference between side-mount and top-mount multi-valve?

In side-mount, the multi-valve is placed on the side of the tank (easier access/maintenance), while in top-mount, it is on the top (more compact installation). Both operate with 6 positions: filter, backwash, rinse, recirculate, closed, waste.

How do I backwash?

Stop the pump, turn the multi-valve to “Backwash”, start for 1–3 minutes until the water in the glass is clear, stop, turn to “Rinse” for ~30΄΄ and return to “Filter”. Recommended when the pressure rises 0,3–0,5 bar above normal.

How often do I change the sand?

Quartz sand is usually replaced every 3–5 years, depending on usage and water quality. Glass filter media has a longer lifespan.

How do I choose the right sand filter size?

Choose based on your pump flow rate (m³/h) and pool volume, to achieve full recirculation in 4–6 hours. The filter must have a flow rate equal to or greater than the pump. Contact us for a free sizing.

4,9/5 on Google

Real customer reviews of OXYGON — 130+ reviews, average 4,9.

"Impeccable service and a wide variety of products in water, pool and whirlpool treatment. The most important thing is that everything is immediately available."

"The team was consistent with the schedules, highly organized, and always available to answer questions or offer solutions to every little detail. I highly recommend them."

"One of the leading companies of its kind! If there's one thing one should keep in mind, it's definitely professionalism and dedication to the results of their work. Congratulations!"

"Really very good service and very good prices. They answer any question you may have and guide you with their knowledge to the best possible choice."

"Impeccable service and technical training in the field of swimming pools and water treatment. Specialization in identifying and correcting previous poor work by other companies."

"The entire company team is impeccable! Polite, helpful and experienced in every aspect of their work!"

"Truly the best service and honestly unbeatable prices!! Well done!!"

"Professionals, they know their stuff and care about customer satisfaction. I highly recommend them."

ESTER Swimming Pool Sand Filter

Specifications

Dimensions (cm)

FAQ

Popular searches

4,9/5 on Google

Related products OXYGON

Contact Us

ESTER Swimming Pool Sand Filter

Specifications

Dimensions (cm)

FAQ

Popular searches

4,9/5 on Google

Related products

Automatic Filter Valve Batteries

Manual Filter Valve Faucets

Manual Pool Filter Valves

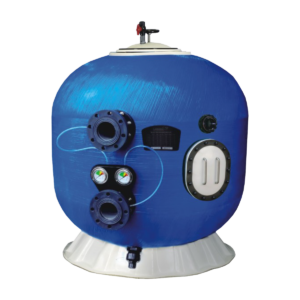

BobbinWound Commercial Pool Sand Filter
