Available in wholesale offer

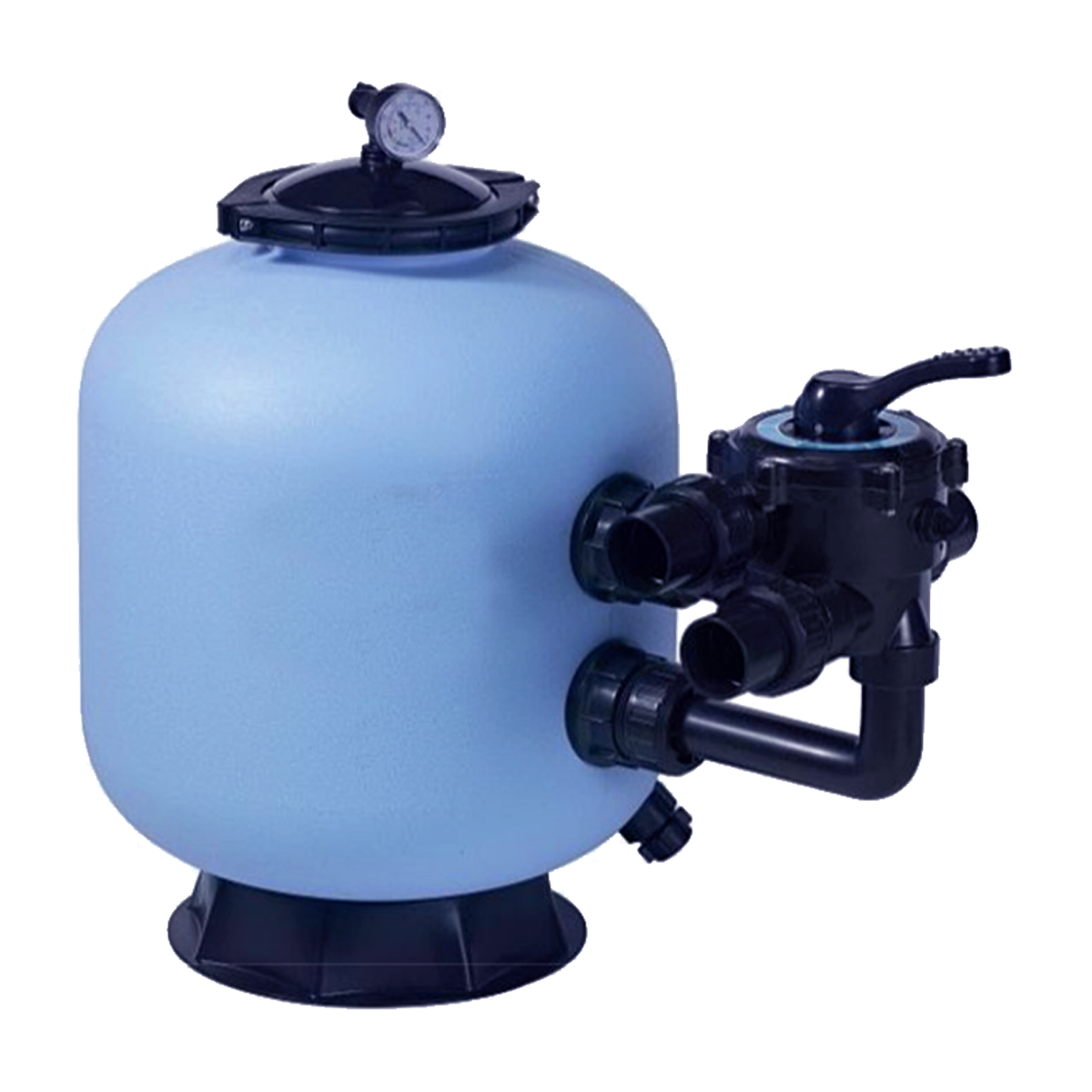

Proton Pool Sand Filter

Proton sand filters made of high density polyethylene, anti-corrosion & environmentally friendly. Available with side or top 6-position multivalve, Ø450–Ø710.

Model

Clear

Request a Quote ☎ 2310 810 000

Specifications

CODE	MODEL (Ø)	POLYVANAS	FLOW (m³/h)	CONNECTION (Ø)	SAND (kg)	WEIGHT (kg)
102.01.29	Ø450	Side	8	Ø50	75	7
102.01.30	Ø535	Side	12	Ø50	100	11
102.01.31	Ø635	Side	18	Ø50	175	14
102.01.32	Ø710	Side	22	Ø50	250	19
102.01.29#top	Ø450	Upper	8	Ø50	75	7
102.01.30#top	Ø535	Upper	12	Ø50	100	11
102.01.31#top	Ø635	Upper	18	Ø50	175	14

Size

MODEL	H	A	P	C	G	E
Ø450	Wide base	Wide base	Wide base	Wide base	Wide base	Wide base
Ø535	Wide base	Wide base	Wide base	Wide base	Wide base	Wide base
Ø635	Wide base	Wide base	Wide base	Wide base	Wide base	Wide base
Ø710	Wide base	Wide base	Wide base	Wide base	Wide base	Wide base

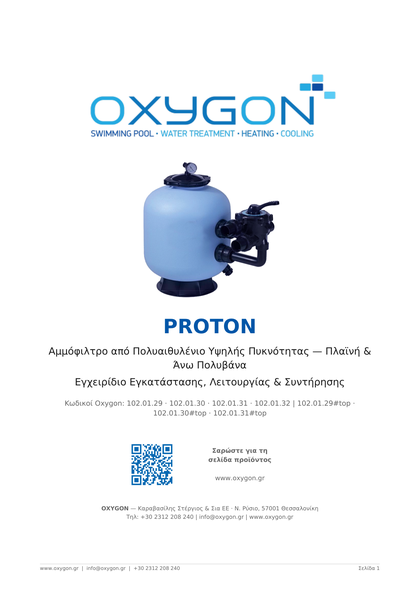

Manual & Documentation

Detailed installation & user manual for the Proton series — available in three languages.

Greek (PDF) English (PDF) Romanian (PDF)

FAQ

How much sand does a sand filter need?

It depends on the size (Ø) of the filter. The exact quantity in kg is indicated in the “SAND” column of the technical characteristics table for each model. Use quartz sand 0,5–0,8 mm or glass filter media.

What is the difference between side-mount and top-mount multi-valve?

In side-mount, the multi-valve is placed on the side of the tank (easier access/maintenance), while in top-mount, it is on the top (more compact installation). Both operate with 6 positions: filter, backwash, rinse, recirculate, closed, waste.

How do I backwash?

Stop the pump, turn the multi-valve to “Backwash”, start for 1–3 minutes until the water in the glass is clear, stop, turn to “Rinse” for ~30΄΄ and return to “Filter”. Recommended when the pressure rises 0,3–0,5 bar above normal.

How often do I change the sand?

Quartz sand is usually replaced every 3–5 years, depending on usage and water quality. Glass filter media has a longer lifespan.

How do I choose the right sand filter size?

Choose based on your pump flow rate (m³/h) and pool volume, to achieve full recirculation in 4–6 hours. The filter must have a flow rate equal to or greater than the pump. Contact us for a free sizing.

4,9/5 on Google

Real customer reviews of OXYGON — 130+ reviews, average 4,9.

"Impeccable service and a wide variety of products in water, pool and whirlpool treatment. The most important thing is that everything is immediately available."

"The team was consistent with the schedules, highly organized, and always available to answer questions or offer solutions to every little detail. I highly recommend them."

"One of the leading companies of its kind! If there's one thing one should keep in mind, it's definitely professionalism and dedication to the results of their work. Congratulations!"

"Really very good service and very good prices. They answer any question you may have and guide you with their knowledge to the best possible choice."

"Impeccable service and technical training in the field of swimming pools and water treatment. Specialization in identifying and correcting previous poor work by other companies."

"The entire company team is impeccable! Polite, helpful and experienced in every aspect of their work!"

"Truly the best service and honestly unbeatable prices!! Well done!!"

"Professionals, they know their stuff and care about customer satisfaction. I highly recommend them."

Proton Pool Sand Filter

Specifications

Size

FAQ

Popular searches

4,9/5 on Google

Related products OXYGON

Contact Us

Proton Pool Sand Filter

Specifications

Size

FAQ

Popular searches

4,9/5 on Google

Related products

Automatic Filter Valve Batteries

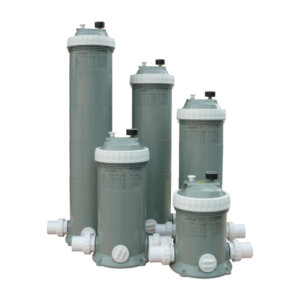

Pool / Spa Cartridge Filter

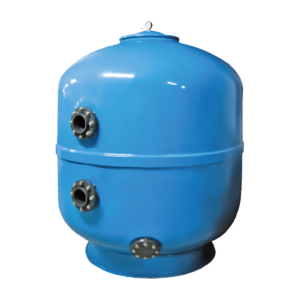

Sand Filter Commercial
