Compact automatic heat exchanger D-KWT 45/85 in stainless steel or titanium, fully wired with three-speed circulator, non-return valve and digital regulator 0-42°C. Wholesale.
Ο Compact is fully wired and ready for connection: corrugated stainless steel or titanium pipe, three-speed circulator for the primary, check valve, on-off switch, LED indicator light and digital temperature controller 0-42°C with actual temperature display and adjustable difference (factory setting 0,5°C).
It simply connects to the circuit with a D50 solder socket and comes with a pair of plastic clips for wall or floor mounting. Extremely versatile — for swimming pools, hot tubs, fish tanks and similar installations.
| CODE | MODEL | EFFICIENCY kW (90°C) | CAPITAL FLOW m³/h | PRESSURE DROP INITIAL bar | SECONDARY SUPPLY m³/h | PRESSURE DROP SECOND. bar |
|---|---|---|---|---|---|---|
| 203.11.355 | D-KWT 45 AISI | 46 | 2.0 | 0.15 | 10 | 0.15 |
| 203.11.356 | D-KWT 85 AISI | 84 | 1.8 | 0.25 | 12 | 0.22 |
| 203.11.357 | D-KWT 45 Ti | 46 | 2.0 | 0.15 | 10 | 0.15 |
| 203.11.358 | D-KWT 85 Ti | 84 | 1.8 | 0.25 | 12 | 0.22 |

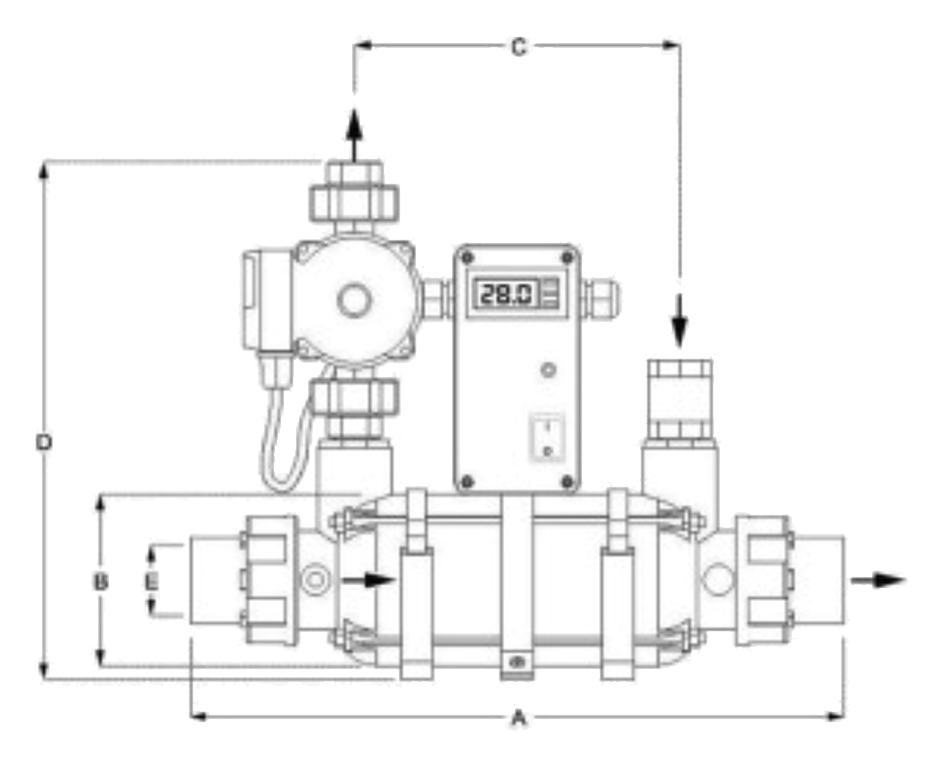

| MODEL | A | B | C | D | E |
|---|---|---|---|---|---|
| D-KWT 45 AISI | 415 mm | 110 mm | 205 mm | 345 mm | 50 mm |
| D-KWT 85 AISI | 705 mm | 110 mm | 495 mm | 345 mm | 50 mm |
| D-KWT 45 Ti | 415 mm | 110 mm | 205 mm | 345 mm | 50 mm |
| D-KWT 85 Ti | 705 mm | 110 mm | 495 mm | 345 mm | 50 mm |
