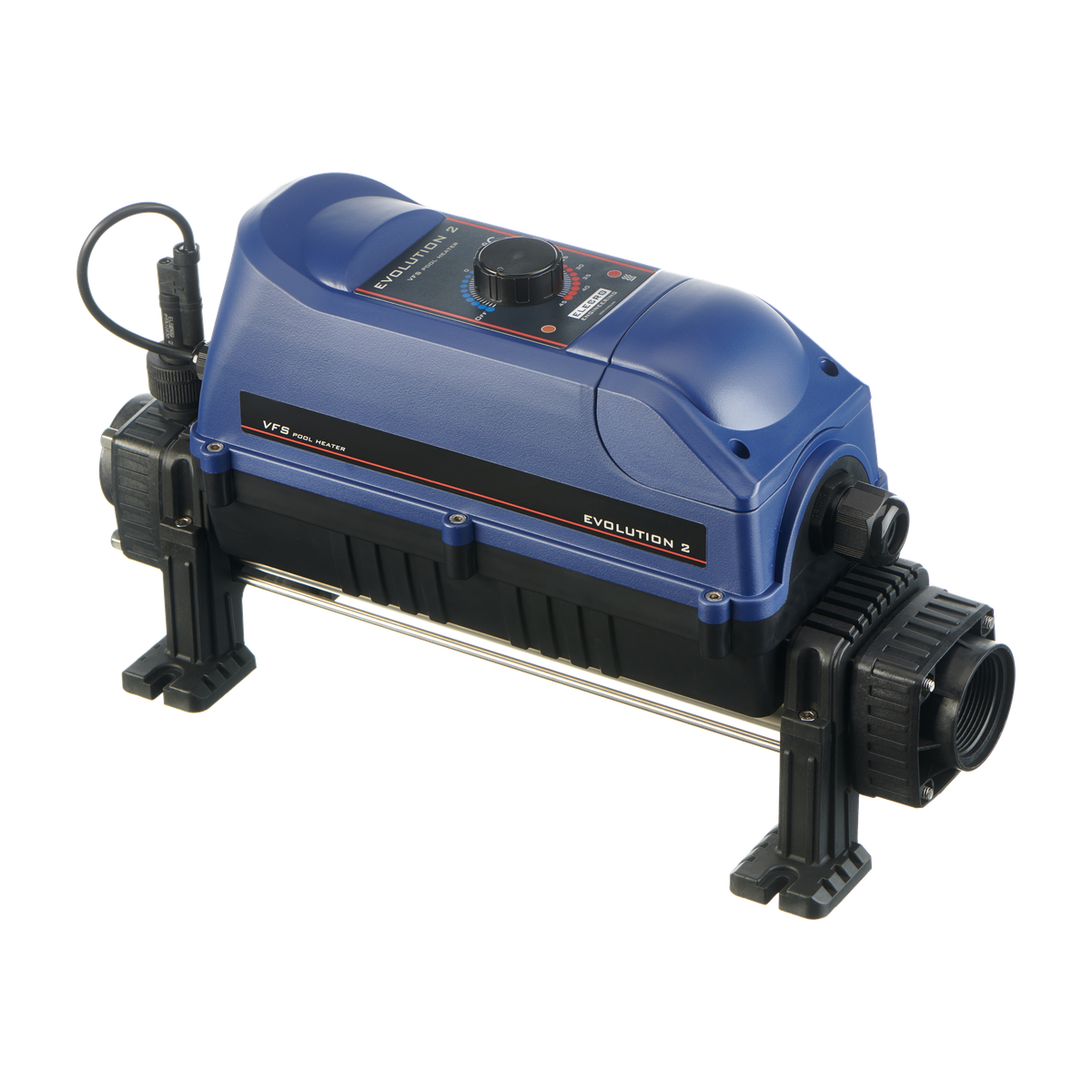

Electric Pool Heater Evolution 2 Analogue — product photo OXYGON

Evolution 2 Digital Pool Heater — technical specifications

Available in wholesale offer

Electric Pool Heater Evolution 2 Analogue

Analog electric pool heater in 12 versions from 1 kW to 24 kW, with titanium heating elements and language selection.

Model

Specifications

The Evolution 2 series covers the entire range of home pools: nine single-phase versions from 1 kW to 18 kW and three three-phase from 15 kW to 24 kW, with analog control and titanium heating elements.

Specifications

Nine single-phase versions 1-18 kW
Three three-phase versions 15-24 kW
Easy to install, fully equipped
Compact and durable
With a reliable dimmer for safe operation
Includes thermostat and overheating sensor
Titanium flow tube and heating elements
It is installed horizontally or vertically on a wall
Silent mode
Analog temperature selection per 1,2 °C with language selection

Models & Technical Specifications

CODE	POWER kW	AMP	MINIMUM FLOW	MAX FLOW	TREND
203.11.239	1,0	6	1 m³ / h	17 m³ / h	220-240V / 1PH
203.11.240	2,0	9	1 m³ / h	17 m³ / h	220-240V / 1PH
203.11.241	3,0	13	1 m³ / h	17 m³ / h	220-240V / 1PH
203.11.242	4,5	20	1 m³ / h	17 m³ / h	220-240V / 1PH
203.11.243	6,0	27	1 m³ / h	17 m³ / h	220-240V / 1PH
203.11.244	9,0	40	4 m³ / h	17 m³ / h	220-240V / 1PH
203.11.245	12,0	53	4 m³ / h	17 m³ / h	220-240V / 1PH
203.11.246	15,0	66	4 m³ / h	17 m³ / h	220-240V / 1PH
203.11.247	18,0	79	4 m³ / h	17 m³ / h	220-240V / 1PH
203.11.248	15,0	22	4 m³ / h	17 m³ / h	380-400V / 3PH
203.11.249	18,0	26	4 m³ / h	17 m³ / h	380-400V / 3PH
203.11.250	24,0	35	4 m³ / h	17 m³ / h	380-400V / 3PH

Manual & Documentation

Evolution 2 series single manual — analog & digital: installation, plumbing, electrical, water quality, faults

Greek (PDF) English (PDF) Romanian (PDF)

FAQ

What power is suitable for my pool?

The power depends on the volume, insulation, use of cover and the season. Please inform us about your pool so that we can recommend the appropriate model.

Electric heater or heat pump?

The electric heater provides instant heating, has a low purchase cost and is small in size — ideal for small pools, hot tubs and for rapid temperature increases. The heat pump has lower operating costs and is suitable for continuous heating of larger pools.

Which series should I choose?

Spa and Splasher for hot tubs and small pools, Evolution 2 (analog or digital) and Optima for domestic pools, X-EWT 2.0 for professional and public installations. The D-EWT series covers specific shell and material needs.

I have salt electrolysis — which heater is suitable?

Choose a model with a titanium heating element: the D-EWT Ti Line and D-EWT Neo Line Titanium series, or the X-EWT 2.0 versions for salt water. Titanium withstands high salt concentrations and seawater.

Where is the heater placed?

Always after the filter and before returning to the pool, horizontally or vertically on a wall depending on the series. The D-EWT series have Φ50 soldered outlets for direct connection, while the X-EWT 2.0 can also be installed in a by-pass.

What protections do they have?

All models have a rheostat or pressure switch that does not allow operation without sufficient water flow, a control thermostat and an independent overheating safety thermostat. The X-EWT 2.0 series add three thermostats at 55 °C and a pressure sensor.

How do I request a quote?

Choose a model, add it to the order or call us at 2310 810 000 — our team will help you choose the right power and series for your pool.
