Pool Heat Pump Sun series

15kw, 18kw, 25kw, 35kw

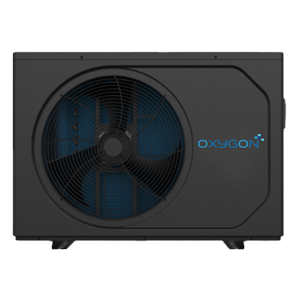

Heat pump Oxygon Sun Series
CODEOX-15BA1OX-18BA1OX-25BA1OX-35BA1
HEATING
Air 24C Water 26C		3,8 kW - 15,0 kW4,8 kW - 18,0 kW6,8 kW - 25,0 kW8,8 kW - 35,0 kW
ENTRY VALIDITY0,24 kW - 2,5 kW0,30 kW - 3,09 kW0,43 kW - 4,12 kW0,56 kW - 5,15 kW
COP6,8 - 15,86,9 - 15,86,8 - 15,86,9 - 15,8
HEATING
Air 15C Water 26C		2,0 kW - 12,5 kW3,8 kW - 16,5 kW5,5 kW - 22,0 kW6,4 kW - 28,0 kW
ENTRY VALIDITY0,39 kW - 2,36 kW0,5 kW - 3,37 kW0,72 kW - 4,70 kW0,84 kW - 5,20 kW
COP4,9 - 7,64,9 - 7,64,9 - 7,64,9 - 7,6
POWER SUPPLY220-240V / 50hz220-240V / 50hz220-240V / 50hz380V / 50Hz
Power consumption2,60 kW3,20 kW4,45 kW6,93 kW
AMPERAGE12 A14,7 A20,4 A11,3 A
COOLING POWER2,1kW - ​​9,4kW2,7 kW - 11,60 kW3,8 kW - 14,90 kW4,9 kW - 19,30 kW
CONDENSERTitaniumTitaniumTitaniumTitanium
COOLANTR32R32R32R32
FANS1111
NOISE db (A) (1 meter)≤ 43 - 55≤ 45 - 56≤ 47 - 58≤ 49 - 59
LOGINØ50Ø50Ø50Ø50
MINIMUM FLOW5,5 m3 / h6,5 m3 / h9,0 m3 / h12,0 m3 / h
OPERATING TEMPERATURE-15C - +43C-15C - +43C-15C - +43C-15C - +43C
NET DIMENSIONS L/W/H mm920/380/650920/350/6501092/445/7421080/420/740
PACKAGING DIMENSIONS L/W/H mm990/440/760990/440/7601150/460/8621150/460/870
WEIGHT net/gross46 / 5750 / 6288 / 9998 / 110
modeHEATING & COOLING WITH REVERSE DISCHARGEHEATING & COOLING WITH REVERSE DISCHARGEHEATING & COOLING WITH REVERSE DISCHARGEHEATING & COOLING WITH REVERSE DISCHARGE

Upgrade your pool heating and cooling with state-of-the-art heat pump technology Oxygon.

Contact us to learn more about heat pump installation in your space.
